Specifications
4 Availalble in dial sizes 2-1/2", 4" & 6"
4 Back, Bottom or All-Angle (Every Angle) Type
4 Complete Stainless Steel Construction
4 Dry or Liquid Filled (Glycerin or Silicon)
4 Any standard thread connection
4 Ranges from -40 to +500 deg C
Download Datasheets Series
Back Mounted Bimetal Thermometer 63mm, 100mm, 150mm.............ZBH
Bottom Mounted Bimetal Thermometer 63mm, 100mm, 150mm.........ZBV
All Angle Type Bimetal Thermometer 63mm, 100mm, 150mm.............ZBA
Applications
Pharmaceutical, Chemical, Petrochemical, Refinery, Paper, & Pulp, Sugar, Breweries, Food & Beverages, Cement Industries, etc
Pressure Range Selection
Options Available
4Custom Stem Lengths, Stem Diameter, Temp. Ranges
4Custom Designed Dials
4 Accessories: Thermowells
How to Inquire:
Send you inquiry with details like :
4dial size: 63mm, 100mm or 150mm
4temperature range: any std range in C or F
4thread connection : 3/8" or 1/2" bsp or npt
4mounting : back, bottom or all-angle
4stem length : 63mm, 100mm, 150mm, 200mm, 250mm, 300mm or any custom length
4stem diameter: 6mm, 8mm, 9.5mm, 10mm or 12mm
4filling: dry or liquid filled
4thermowell requirement
4or any other special requirements you have.
Send Email to 4 sales@adarshpressuregauge.com or 4Click here to send inquiry by online form Or Call +91-22-29275496 Fax +91-22-29275558
Since 1989
For Inquiry CALL +91-22-29275496
India
Bimetal Thermometers
ZB Series
ZB Series
Model ZBH
Back Mount
(Horizontal)

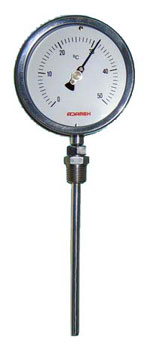

Model ZBV
Bottom Mount
(Vertical)

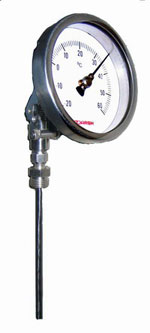

Model ZBA
All-Angle Type
(Every Angle)
In ºF
-40 to 160°F
0-100°F
0-220°F
20-240°F
25-125°F
50-400°F
50-500°F
50-600°F
50-750°F
In ºC
-40 to 60ºC
-20 to 60ºC
0-50ºC
0-100ºC
0-120ºC
0-150ºC
0-200ºC
0-300ºC
0-400ºC
0-500ºC
Also available in dual scales with C & F readings
