Features
4 Available in Dial Sizes 100mm (4"), 150mm (6")
4 Pressure Ranges from 0-400mmwc to 6000mmwc / 0-1 kg/cm2 upto 25 kg/cm2
4 Max Static Pressure 25 bar upto 60 bar
4 SS316 Diaphragm / Spring Steel Diaphragm
4 Bottom or Back Mounted
Download Datasheets Series
100mm (4") Differential Pressure Gauges..........................ED100
150mm (6") Differential Pressure Gauges..........................ED150
Options Available
4 Remote Capillary with Diaphragm Seals
4 Electric Contacts
4 3 way / 5 way Manifold Valves
Applications
Pharmaceutical, Chemical, Petrochemical, Oil & Gas, Refinery, Paper & Pulp, Sugar, Breweries, Food & Beverages, Cement Industries, etc
Pressure Range Selection
Low Pressure
mmwc or mbar
0-400 0-40mbar
0-600 0-40mbar
0-1000 0-40mbar
0-2000 0-40mbar
0-3000 0-40mbar
0-4000 0-40mbar
0-5000 0-40mbar
0-6000 0-40mbar
Also available in mbar, kpa, units
4How to Inquire:
Send you inquiry with details like :
dial size: 100mm or 150mm
pressure range: any standard range from above
thread connection: 1/4" npt F x 2 is standard (for other connection let us know)
mounting: bottom or back
Max Static Pressure
application media or any other information you have.
Send Email to 4 sales@adarshpressuregauge.com or 4Click here to send inquiry by online form Or Call +91-22-29275496 Fax +91-22-29275558
For Inquiry CALL +91-22-29275496

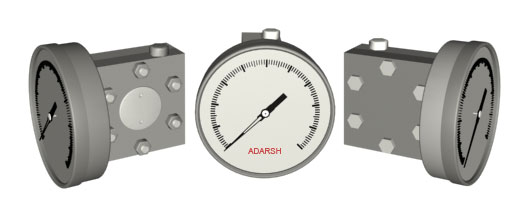

Differential Pressure Gauges
ED Series
ED Series
Features
4 Pressure Measurement from 6mmwc upto 100mmwc
4 Dial Sizes 4-1/2" (115mm)
4 Aluminium Case
4 Accuracy +-2% F.S.
Applications
Filter Status
Duct Static Pressure
Clean Room Pressure
Building Pressure
Fan and Blower Pressure
Paint Booths
Dust Collectors
Glove Box Pressure
Bubbler Systems
Cabinet Purging
Std. Pressure Ranges
mmwc or Pa (pascal)
0-6 0-60
0-10 0-120
0-12 0-250
0-20 -60 to +60
0-25 -50 to +50
0-100
0-150
0-250
-50 to +50mmwc
-100 to + 100mmwc
Very Low Pressure Differential Pressure Gauges ES Series
High Pressure
kg/cm2 or bar
0-1
0-2.5
0-4
0-6
0-10
0-16
0-25
