Digital Temperature Gauge
Digital Temperature Gauges offer better accuracy compared to traditional mechanical temperature gauges. They are highly reliable compared to mechnanical gauges in terms of both longevity and accuracy. They dont need case compensation like liquid or gas filled temperature gauges, so you can always be sure about the accuracy of the gauge. The problem of giving continuous power to digital temperature gauge is solved by our unique electronics which ensures that internal battery life is upto 2 years and no other external ac or dc source is required. Either an rtd or thermocouple can be connected to show the temperature upto 600 / 1100 deg C respectively.

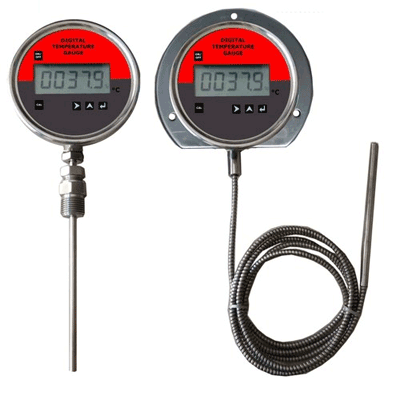

Rigid Stem Type Digital Temperature Gauge
Capillary Type Digital Temperature Gauge
Specifications :
Series : TI-400 , TIR-400 with rigid stem type & TIC-400 with capillary Type
Dial Size : 4"
Case & Ring : SS304
Stem : SS304 or SS316
Stem length : can be customized, 100 / 150 / 200 / 300 & above
Capillary (TIC model) : SS Armoured 3 meter standard and beyond upto 25 meter.
Connection : 1/2" bsp or 1/2" npt adjustable
Capillary (TIC model) : SS Armoured 3 meter standard and beyond upto 25 meter.
Connection : 1/2" bsp or 1/2" npt adjustable
Resolution : 0.1 upto 199.9 and above that 1 deg C
Units : C / F
Units : C / F
Accuracy : +/- 1% +/- 1 digit
Battery : AA battery x 5 nos
Battery Life : 2 years *
Display : 15mm height LCD display
Ambient Temperature : 0 to 50 deg C
Range : 0-50, 0-100, 0-150, 0-200, 0-300, 0-400, 0-500, 0-600 with RTD & minus ranges upto -150 deg C
: 0-600, 0-800, 0-1100 with K Type Thermocouple
: 0-600, 0-800, 0-1100 with K Type Thermocouple
Applications :
Process Industries, Food & Pharma, Hygenic Applications, Marine, Refrigeration , OEM equipments.
Inquire Now :
Email: info@adarshindustries.com
Tel : +91-22-29275496 / 5558
Tel : +91-22-29275496 / 5558
Features :
* Battery Operated, 2 Years battery life !!
* Big Display 15mm height
* Stainless Steel construction
* both C / F units
* Ranges upto Max 1100 deg C
