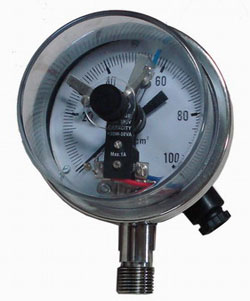

Electric Contact Pressure Gauges
EC Series
EC Series
Specifications
4 Available in 4" (100mm) and 6" (150mm) Dial Sizes
4 Contacts: 1NO+1NC, 1NO, 1NC, 2NO, 2NC, 2NO+2NC
4 Contact Rating: 230V, 100mA
4 SS316 Bourdon and Socket, SS304 Movement
4 Stainless Steel SS304 Case and Ring IP65
4 3/8”, ½” bsp or npt connection
4 Mounting: Bottom Direct, Bottom Surface, Back Direct, Back Panel, Back Clamp Mounting
Download Datasheets Series
100mm (4") Dial Size Electric Contact Pressure Gauge.............EC400
150mm (6") Dial Size Electric Contact Pressure Gauge.............EC600
Pressure Range Selection
Single Scale
kg/cm2 or bar
0-4
0-6
0-10
0-16
0-25
0-40
0-60
0-100
0-160
0-250
0-400
0-600
0-1000
Compound Ranges
-1x3
-1x5
-1x9
-1x15
-1x24
Other Units: psi, Kpa, Mpa also available
Custom Ranges also available
4How to Inquire:
Send you inquiry with details like
Dial size: 100mm or 150mm
Pressure range: Any Standard Range
Thread Size: 3/8" or 1/2" bsp or npt
Mounting: Bottom Direct or Bottom Surface or Back Direct or Back Panel or back Clamp
Contact Type: 1NO+1NC (Std) or 1NO, 1NC, 2NO, 2NC, 2NO+2NC
Contact Rating: in terms of voltage and current
or any other additional information you have.
Send Email to 4 sales@adarshpressuregauge.com or 4Click here to send inquiry by online form Or Call +91-22-29275496 Fax +91-22-29275558
Electric contact pressure gauges are suggested where application is for control of pressure & for Audible or visible alarms. These gauges give electrical output which can be used to turn a motor on/off & similar applications. These gauges can be configured for a 1NO+1NC output or 1NO or 1NC or 2NO or 2NC output.
